| Code: E 14 |
|
Weight: 9.3 kg (6.0 m Length) |
|
 |
| |
| Timber Waling Clamp and Universal Clamp |
Both devices used for soldier wall shuttering system. Waling clamp used to connect timber studs to the soldiers, while the Universal Clamp is used to fasten the aluminum studs to the soldiers. Wall formwork is easily done with these accessories. |
| |
| Timber Waling Clamp |
|
Universal Clamp |
| Code: E 32 |
|
Code: S 25 |
| Weight: 0.90 kg |
|
Weight: 0.72 kg |
|
 |
| |
|
| |

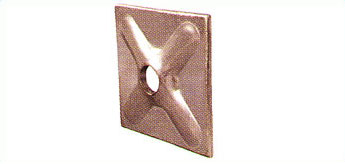

| Counter Plate |
A simple heavy duty reinforced plate 120 x120 x 8 mm. |
| |
| Code: E 28 |
|
Weight: 0.72 kg |
|
 |
| |

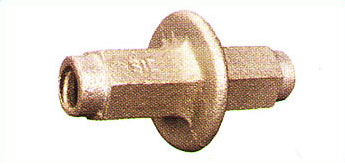

| Water Stopper |
Cast element used as a connector between two tie rods, which prevents water seepage due to its central disk. |
| |
| Code: WSPC |
|
Weight: 0.56kg |
|
 |
| |
|
| |
| Plastic Sleeve |
| Acts as a spacer and allows the recovery of the tie rod by preventing contact with the concrete. |
| Code: T 60 |
 |
| |

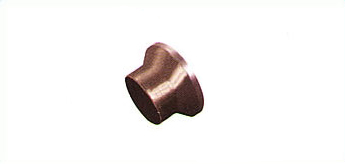

| Plastic Cone |
Located at the ends of the plastic sleeve, cone allows the tie rod to penetrate easily side to another. |
| Code: T 59 |
 |
| |

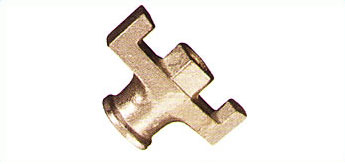

| Wing Nut |
Cast nut with lever arm action used counter plate for all soldiers or waling applications. Supplied either black or galvanized. |
| |
| Code: WSPC |
|
Weight: 0.56kg |
|
 |
