V Stud Systems
.................................................................................


The system is designed for vertical curved faces down to a minimum diameter of 3.0 m (subject to type and thickness of face material). Precise adjustments is easily carried out by turnbuckle, which allows complex curvatures and shapes to be formed. The panel can be gang formed into large units for crane handling and can also be used for Flat Formwork.


Applications

Curved Walls
Water Tanks
Columns of Large Diameter

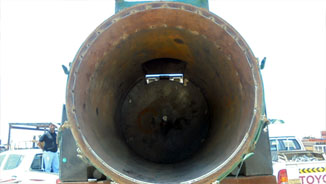

Circular Shafts
Silos


Advantages

Variable radius facility, concave, convex or complex shapes
Superior concrete finish. - Wide soldier spacing, about 600 mm
Minimum radius for 19 mm plywood is 3.5 m
Simple ply faced flexible form
Any height wall accommodated
Suitable for any tie system
Can be used as single sided shutter
