| Size: 1.5 X 1.5" |
& |
2.0" X 1.5" |
| Code: E 05 |
& |
2.0" X 1.5" |
| Weight: 0.68 kg |
& |
0.73 kg |
|
| |
 |
| |

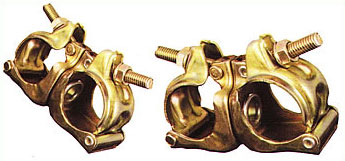

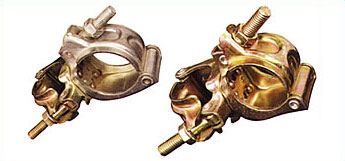

| Pressed Double Coupler (M.D.) |
Used to connect two scaffolding tubes at right angles. These are critical components in the scaffolding structure and must be load bearing to resist both slip and distortion. |
| |
| Size: 1.5 X 1.5" |
& |
2.0" X 1.5" |
| Code: E 04 |
& |
E56 |
| Weight: 0.68 kg |
& |
.73 kg |
|
| |
 |
| |
|
| |

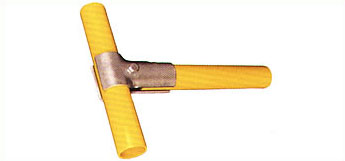

| Fixed Final |
Connect a scaffolding tube at right angles directly to the end of another tube with no projection. Ideal for guard rails, crowd control barriers .. etc. |
| |
|
 |
| |
| Pressed Sleeve Coupler |
Used to join two scaffolding tubes externally end to end. A steel divider located centrally ensures equal insertion of each tube. They can be employed where tension joints are required. |
| |
|
 |
| |
|
| |

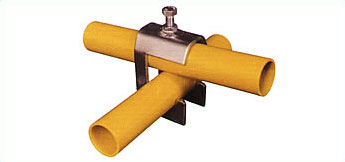

| DH Putlog Coupler |
This coupler is designed to secure putlogs and transoms to ledger. It also conforms to the requirements for bracing coupler as it is capable of taking much higher loading than normal putlog couplers. |
| |
|
 |
| |

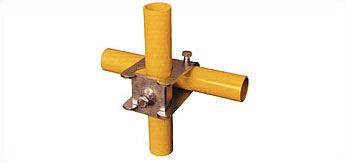

| Band and Plate Coupler |
The original load bearing coupler for connecting two scaffold tubes at right angles. This is the only 90 degree coupler that can also bear scaffold tube in parallel. |
| |
| Code: E 11 |
|
Weight: 1.27kg |
|
 |
| |
|
| |

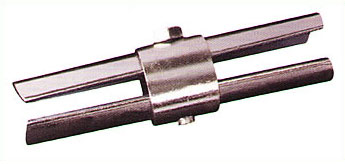

| Joint Pin |
Used to connect two scaffolding tubes end to end. Fitted internally it expands to apply maximum grip against the wall of the tube. Not suitable for joints where tension can be developed in the tube. |
| |
| Code: E 11 |
|
Weight: 1.27kg |
|
 |
| |

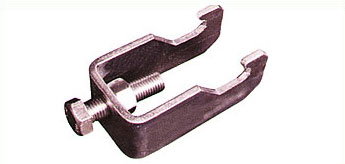

| Patent Clamp |
This is a highly economical fitting for fastening scaffolding tubes to girders with a single bolt. Suitable for loads at right angles to flanges only. Must be used in pairs. |
| |
| Code: E 01 |
|
Weight: 0.70kg |
|
 |
| |

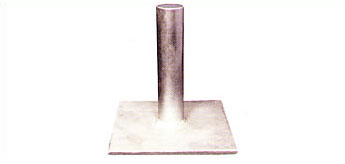

| Base Plate |
A 120 mm x 120 mm steel plate providing a full bearing surface for load distribution from vertical. |
| |
| Code: E 01 |
|
Weight: 0.70kg |
|
 |
|
| |
