Kwick Stage Decking Systems |
................................................................................. |
|

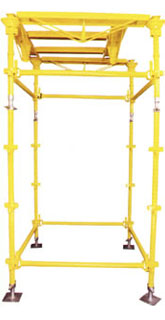

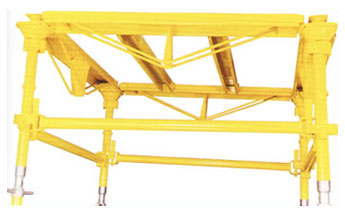

Kwickstage Decking System is the leading slab decking system, which is compatible for decking out with plywood or any other suitable material. Minimal assembly and dismantling time couples with limited number of components high-lights today, the most cost effective system. Kwickstage Decking System incorporates the advantage of early striking (to enable early removal of formwork primary and secondary, while reinforced concrete element remains supported on staging with drophead), which dramatically increases output, while employing less labour more efficiently. Although the system is designed primarily for use with shoring of scaffolding systems, It can also be used with telescopic props, or any other conventional staging subject to their suitability with respect to load bearing capacity and lateral stability.
|
|
|
|
|
|
|

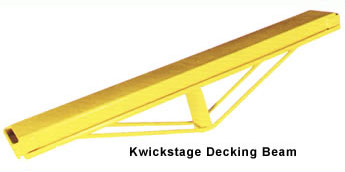

A. Decking Beam |
Kwickstage’s decking beams are designed with wide top flange giving more support to the plywood, and thereby reducing maintenance costs by extending the life of the plywood. The decking beams are available in 2.44, 1.83, 1.22, 0.91 and 0.61 sizes, but any special size can be constructed for a nominal charge. |
|
STANDARD (SHORELCOK) SOFFIT |
CODE |
SIZE (m)
|
APPROX WEIGHT (kg) |
CSFDB08 |
8' (2.44 m) |
22.37 |
CSFDB06 |
6' (1.83 m) |
17.21 |
CSFDB04 |
4' (1.22 m) |
10.06 |
CSFDB03 |
3' (0.91 m) |
6.13 |
CSFDB02 |
2' (0.61 m) |
4.11 |
|
|
|
|
|
|
B. Infill Beam |
Infill beams are used to provide the transom support underneath the plywood. Kwickstage infill beams are made from top quality steel which ensures longevity. All standard sizes are manufactured, but any special sizes can be constructed on request. |
|
INFILL BEAM |
CODE |
SIZE (m)
|
APPROX WEIGHT (kg) |
CSFIB04 |
4' (1.22 m) |
4.50 |
CSFIB03 |
3' (0.91 m) |
3.48 |
CSFIB02 |
2' (0.61 m) |
2.45 |
|
|
|
|

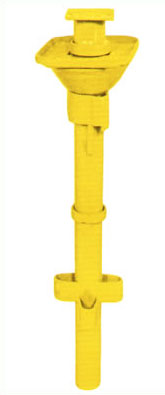

C. Drop Head |
One of the most important parts of shuttering is the drophead. Kwickstage System dropheads, made from the highest quality steel, are specially designed to enable the lowering of the decking beam by 10cm. This allows the removal of the decking and infill beams using a hammers stroke.
|
|
DROPHEAD (KWICKSTAGE) |
CODE |
HEIGHT (m) |
APPROX WEIGHT (kg) |
CSFDH06 |
0.67 |
4.43 |
|
|
|
|

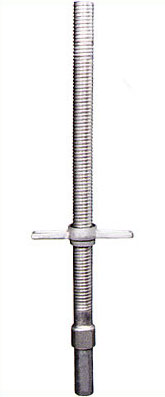

D. Spigot Jack |
Spigot jacks allow differences in height to be maintained, the base jacks like the spigot jacks are either hollow or solid with deep threads. Easy adjustments can be made with the spigot jacks’ special spindles. |
|
BEAM BRACKET |
CODE |
SIZE (M) |
CROSS SECTION |
APPROX WEIGHT (kg |
CSFSJ75 |
75 cm |
Solid |
3.25 |
CSFSJ75 |
75 cm |
HolloW |
3.12 |
|
|
|
|
|
|
|
|
|
|
