| Kwickstage Components |
| A. Standards |
WedgeLock have either opened or spigot ends which are made from scaffolding tubes which have "V" pressing welded at nominal 500 mm centers to provide four-way connections for the horizontal. |
| |
| STANDARD KWICKSTAGE |
| CODE |
HEIGHT (m) |
APPROX WEIGHT (kg)
|
| CSFSK2972 |
297.2 |
15.10 |
| CSFSK2476 |
247.6 |
12.77 |
| CSFSK1981 |
198.1 |
10.00 |
| CSFSK1486 |
148.6 |
8.11 |
| CSFSK991 |
99.1 |
5.78 |
|
| |
|
| |
| B. Ledger & Transforms |
These are horizontal members which are connected to the 'V' pressing on standards with a quick-acting positive wedge fitting. |
| |
| LEDGER KWICKSTAGE |
| CODE |
SIZE (Cm)
(Center to center of standard) |
APPROX WEIGHT (kg) |
| CSFLK 244 |
8' (244) |
9.16 |
| CSFLK 183 |
6' (183) |
7.03 |
| CSFLK 122 |
4' (122) |
4.89 |
| CSFLK 091 |
3' (0.91) |
3.82 |
| CSFLK 610 |
2' (61.00) |
2.76 |
|
| |
| LEDGER KWICKSTAGE |
| CODE |
SIZE (Cm)
(Center to center of standard) |
APPROX WEIGHT (kg) |
| CSFLK 24 |
8' (244) |
21.04 |
| CSFLK 183 |
6' (183) |
15.92 |
| CSFLK 122 |
4' (122) |
10.10 |
| CSFLK 091 |
3' (0.91) |
8.23 |
| CSFLK610 |
2' (61.00) |
5.67 |
|
| |
|
| |

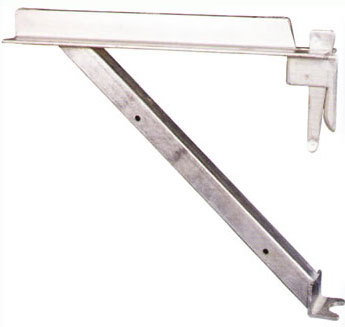

| C. Hop-up Bracket |
The cantilever Element is attached to the vertical to provide a cantilever support for access where the slab projects is beyond the line of outermost support. |
| |
| LEDGER KWICKSTAGE |
| CODE |
SIZE (m) |
APPROX WEIGHT (kg) |
| CSFLK 2 |
2-BOARDS |
6.90 |
|
| |
| D. Tie Bar |
| CANTILEVER BEAM FRAME |
| CODE |
SIZE (m)
(Angle 40 X 40 X 5 mm) |
APPROX WEIGHT (kg) |
| - |
2.44 |
7.60 |
| CSFCB 183 |
1.83 |
5.70 |
| CSFCB 130 |
1.30 |
4.05 |
|
| |
 |
| |
|
