| STANDARD (SHORELCOK)SOFFIT |
| CODE |
SIZE (m)
|
CROSS SECTIONS |
APPROX WEIGHT (kg) |
| CSFBJ065 |
0.65m |
Hollow |
3.35 |
| CSFBJ065 |
0.65m |
Solid |
5.330 |
|
| |

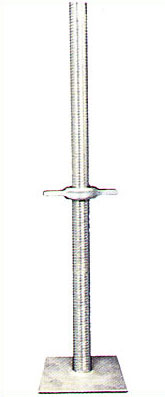

| B. Base Plate |
The base plate is used at the bottom of a standard to give the necessary spread of load ensuring complete stability |
| |
| PLANE BASE |
| CODE |
SIZE (m)
|
DIMENSIONS |
APPROXWEIGHT (kg) |
| CSFBP10 |
3/4" X 10 cm |
12 cm x 12 cm x 6 mm |
0.78 |
| CSFBP065 |
0.65m |
Solid |
5.330 |
|
| |

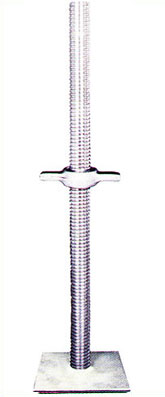

| C. Rocking Base Plate |
This component is used either as a base plate at the bottom of a standard to give the necessary spread of load, or when the jack is used at the top of the standard as a rocking plate, to accept a drophead in a slanting position. |
| |
| PLANE BASE |
| CODE |
SIZE (m)
|
DIMENSIONS |
APPROXWEIGHT (kg) |
| CSFRB16 |
16 |
15 cm x 15 cm x 6 mm |
0.95 |
|
| |
|
| |
| D. Connection Elements |
| |
Open-ended standards are joined together using the Spigot Connectors and Box Wedge.6. Technical Data |
| |
|
| |
|
